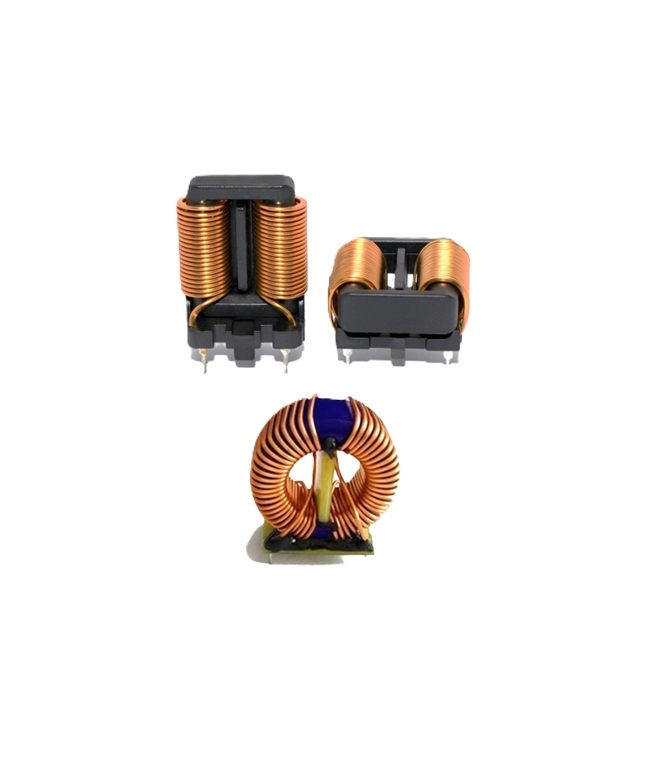

    We designed the common mode choke with clear and thorough frequency using nano crystalline core material with high permeability.
    Despite its small size, it offers excellent broad frequency attenuation performance, high rated current, and low DC resistance value.
    Such a common mode choke can also achieve low height and high voltage ratings.

    Characteristics
    • Very high permeability nanocrystalline core material
    • Improved isolation through plastic case and winding spacer
    • High and stable inductance values up to 150 °C
    • High rated currents
    • Frequency range: 1 kHz-300 MHz
    • Operating temperature: -55°C to +125°C

    Applications
    • Power electronics
    • Power line in- and output filter
    • Radio interference suppression in motors
    • Suppression for common mode noise
