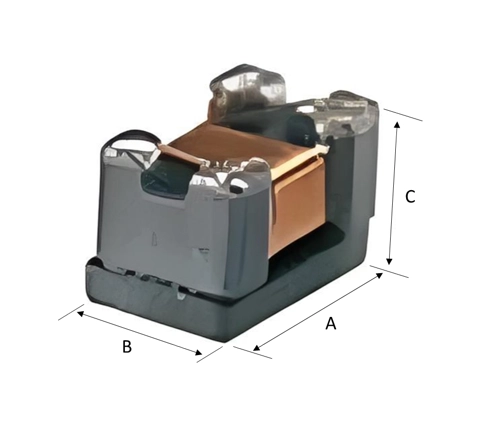

Part. No A B C
YFD1608DT 1.60 0.80 1.10
YFD2012DT 2.00 1.20 1.20
      Unit  mm
Inquire products
Part Number Common Mode Impedance
(Ω)@100MHz Typ.		 Rated Current
(A) Max.		 DC Resistance
(mΩ) Max.		 Download
YFD1608DT 22-90 500-300 0.11-0.25 下載按鈕
YFD2012DT 30-1000 400-150 0.12-1.30 下載按鈕
