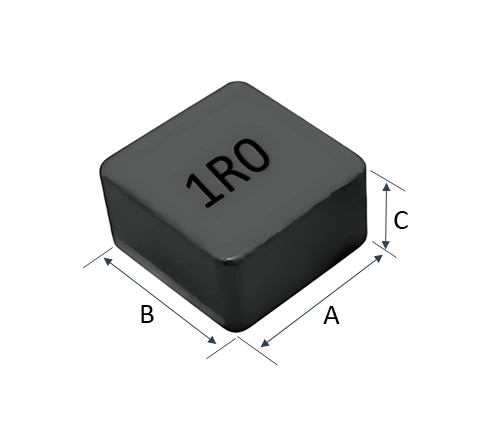

| Part. No | A | B | C |
|---|---|---|---|
| YMT0420A | 4.4 | 4.1 | 1.9 |
| YMT0430A | 4.4 | 4.1 | 2.8 |
| YMT0520A | 5.5 | 5.3 | 1.9 |
| YMT0530A | 5.5 | 5.3 | 2.9 |
| YMT0630A | 6.6 | 6.4 | 2.9 |
| YMT0650A | 6.6 | 6.4 | 4.8 |
| YMT0720A | 7.8 | 7.6 | 1.85 |
| YMT0730A | 7.8 | 7.6 | 2.9 |
| YMT1030A | 11.9 | 11.0 | 2.9 |
| YMT1510A | 16.5 | 15.5 | 9.7 |
| Unit: mm |
Inquire products| Part Number L(uH) | Isat(A) | Irms(A) | DCR(mΩ) | Download |
|---|---|---|---|---|
| YMT0420A 0.1~2.2 | 6.0~33.0 | 5.6~18.0 | 2.42~38.7 | 下載按鈕 |
| YMT0430A 0.4~3.3 | 5.3~15.0 | 6.6~14.0 | 7.26~28.6 | 下載按鈕 |
| YMT0520A 0.15~1.5 | 11.7~27.0 | 8.8~18.8 | 4.60~18.70 | 下載按鈕 |
| YMT0530A 0.33~4.7 | 7.00~26.00 | 5.90~19.20 | 3.52~36.30 | 下載按鈕 |
| YMT0630A 0.33~4.5 | 8.00~28.00 | 7.00~25.00 | 2.50~25.30 | 下載按鈕 |
| YMT0650A 0.82~4.7 | 8.00~20.00 | 8.50~21.00 | 4.18~18.40 | 下載按鈕 |
| YMT0720A 0.33~1.0 | 20.00~31.00 | 11.00~19.00 | 4.80~10.80 | 下載按鈕 |
| YMT0730A 1.0~6.8 | 11.00~28.00 | 6.80~21.80 | 5.00~42.50 | 下載按鈕 |
| YMT1030A 0.56~1.5 | 25.00~39.00 | 18.00~32.00 | 2.75~6.60 | 下載按鈕 |
| YMT1510A 4.7~8.2 | 28.00~39.00 | 25.00~30.33 | 3.80~7.20 | 下載按鈕 |
