The Big Deal
• Very wideband, 5 to 1800 MHz
• High Current, 15A DC Continuous, 25A DC Peak
• Excellent Insertion Loss, 1.0dB typical
• Good Return Loss, 20 dB typ.
• Best AC/RF isolation
Product Overview

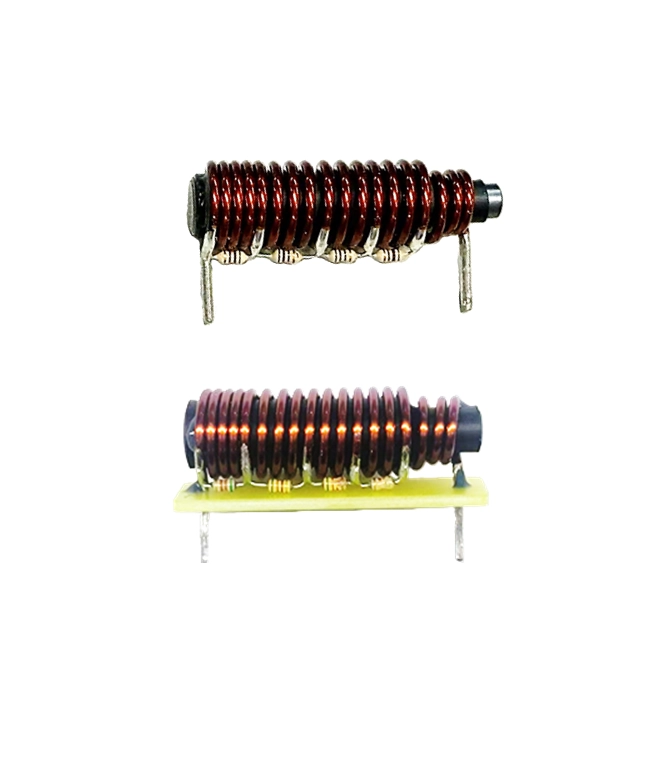

The high current RF Chokes achieve very wide bandwidth from 5 up to 1800MHz

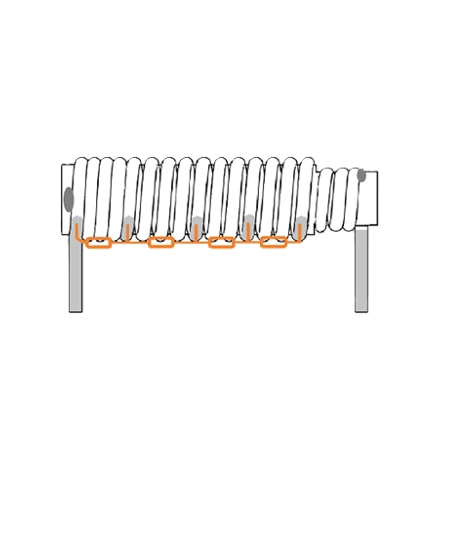

The bandwidth improvement was accomplished by adding a smaller series inductor with an appropriate low loss core. The choke is wound with AWG15 wire, making the maximum continuous current 15A DC and peak current 25A DC.
Excellent Insertion Loss, good VSWR, flatness and rugged construction make these models ideal solutions for rf-choke applications requiring high current across a very wide frequency range. These units support a broad range of system and test applications.
