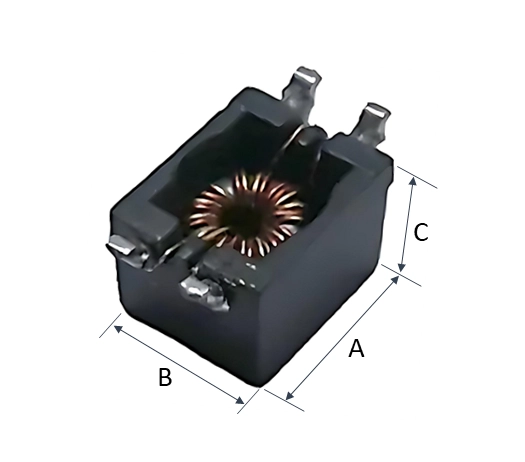

| Part. No | A | B | C |
|---|---|---|---|
| YT006T | 6.86 | 5.50 | 5.08 |
| Unit mm |
Inquire products| Part Number | Common Mode Impedance (Ω)@100MHz Typ. |
Rated Current (A) Max. |
DC Resistance (mΩ) Max. |
Download |
|---|---|---|---|---|
| YT006T-510CS | 5500 | 1.00 | 160 | 下載按鈕 |
| YT006T-251CS | 1800 | 1.20 | 130 | |
| YT006T-471NS | -- | 0.70 | 280 | |
| YT006T-102CS | 6000 | 0.80 | 300 | |
| YT006T-202CS | 9200 | 0.60 | 420 |
