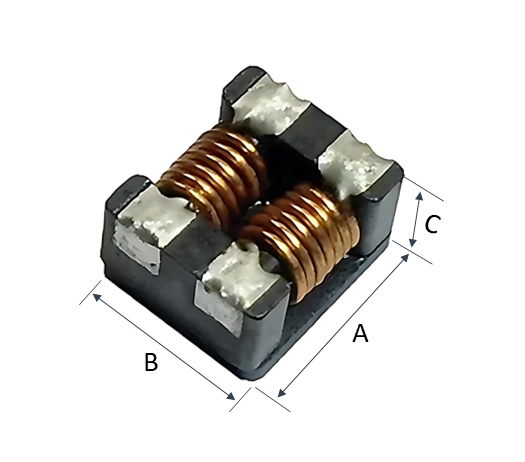

YT764T

Part. No	A	B	C
YT764T	9.00	8.00	5.30
			Unit mm

Part Number	Common Mode Impedance (Ω)@100MHz Typ.	Rated Current (A) Max.	DC Resistance (mΩ) Max.	Download
YT764T-301MS	400	5.00	10	下載按鈕
YT764T-701MS	700	4.00	15	下載按鈕
YT764T-102MS	1000	3.00	17	下載按鈕
