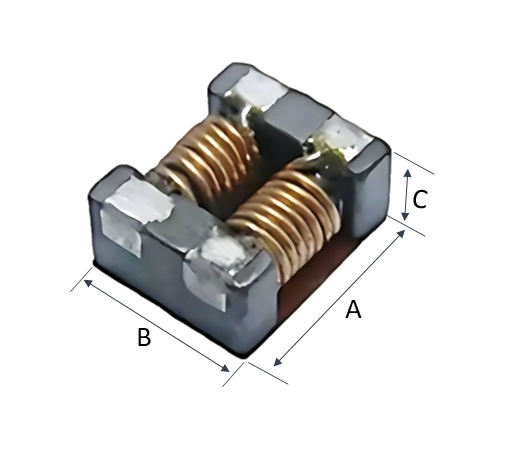

| Part. No | A | B | C |
|---|---|---|---|
| YT764PT | 7.00 | 6.00 | 3.80 |
| Unit mm |
Inquire products| Part Number | Common Mode Impedance (Ω)@100MHz Typ. |
Rated Current (A) Max. |
DC Resistance (mΩ) Max. |
Download |
|---|---|---|---|---|
| YT764PT-101 | 140 | 9.00 | 10 | 下載按鈕 |
| YT764PT-301 | 400 | 5.00 | 10 | 下載按鈕 |
| YT764PT-102 | 1100 | 3.00 | 17 | 下載按鈕 |
| YT764PT-132 | 1300 | 2.50 | 21 | 下載按鈕 |
| YT764PT-272 | 2700 | 1.00 | 63 | 下載按鈕 |
| YT764PT-701 | 800 | 4.00 | 15 | 下載按鈕 |
| YT764PT-302 | 3000 | 0.90 | 75 | 下載按鈕 |
